Please contact email@example.com for a quote and more information.

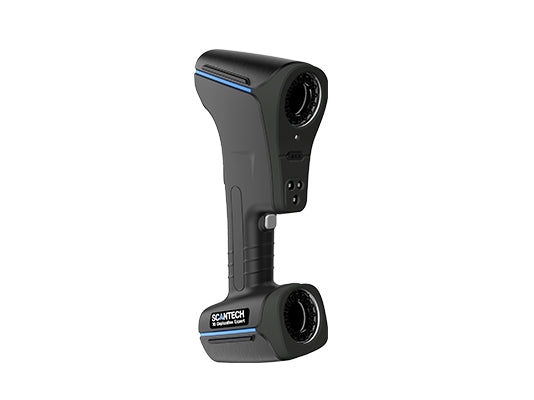

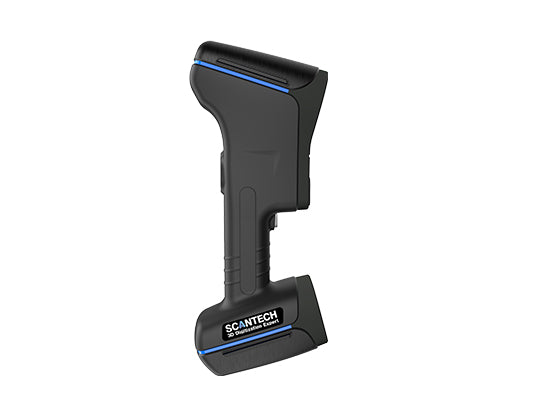

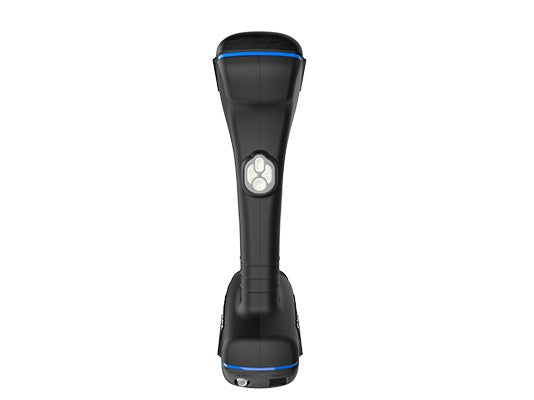

AXE-G7 3D scanner combines the whole advantages and functions of normal handheld 3D scanners.
The biggest breakthrough of AXE-G7 3D laser scanner is to overturn the 3D measurement way for large-volume. It achieves high accuracy scanning for large volumes without an extra device.
AXE 3D laser scanner delivers 3D measurement individually instead of the traditional handheld 3D scanners with photogrammetry system, greatly reducing the cost of device, time and labor.
|Laser source||7 red laser crosses +1 extra red laser line|
|Deep hole scanning||Support|
|Measurement rate||800,000 measurements/s|
|Laser class||CLASS Ⅱ（eye-safe）|
(without extra device)
|0.02 mm + 0.035 mm/m|
|Scanning area||Up to 550 mm × 500 mm|
|Scanning area (photogrammetry)||2500 mm × 3000 mm|
|Stand-off distance||450 mm|
|Depth of field||500 mm|
|Depth of field (photogrammetry)||2500 mm|
|Output formats||.ply, .xyz, .dae, .fbx, .ma, .obj, .asc, .stl or customized|
|Operating temperature range||-10°C ~ 40℃|
|Interface mode||USB 3.0|
|Patents||CN204902790U, CN206905709U, CN107202554, US10309770B2|
