Please contact email@example.com for a quote and more information.

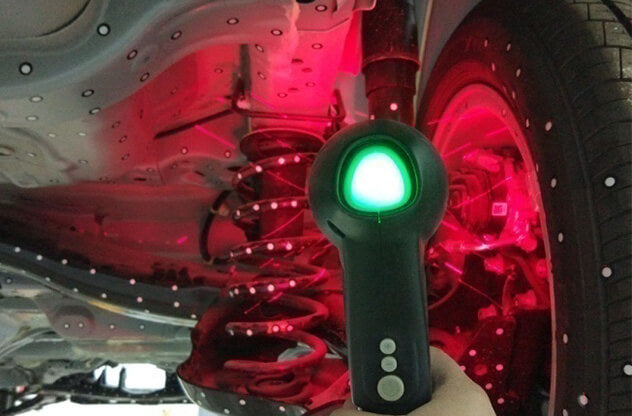

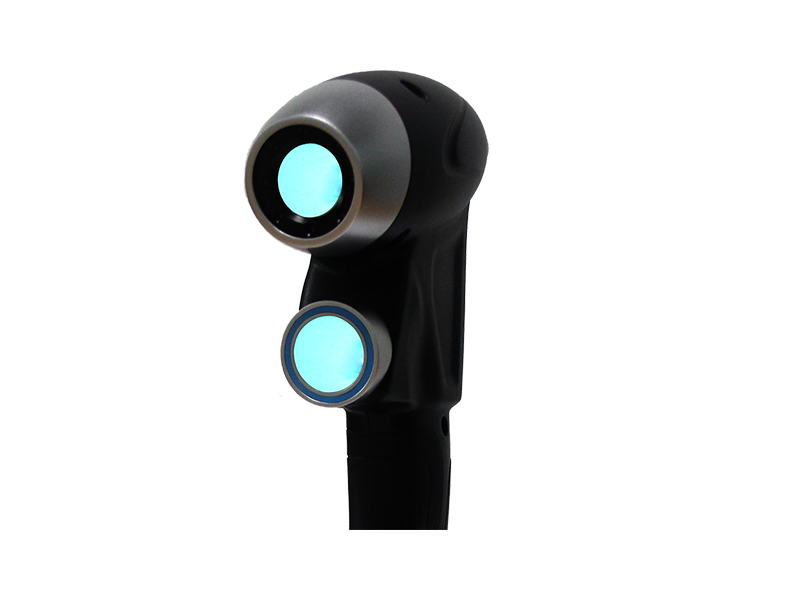

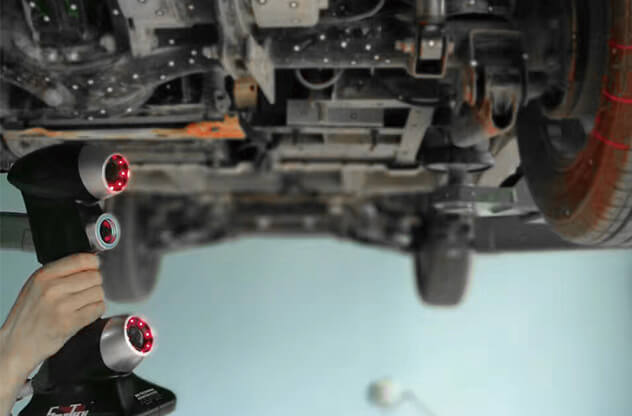

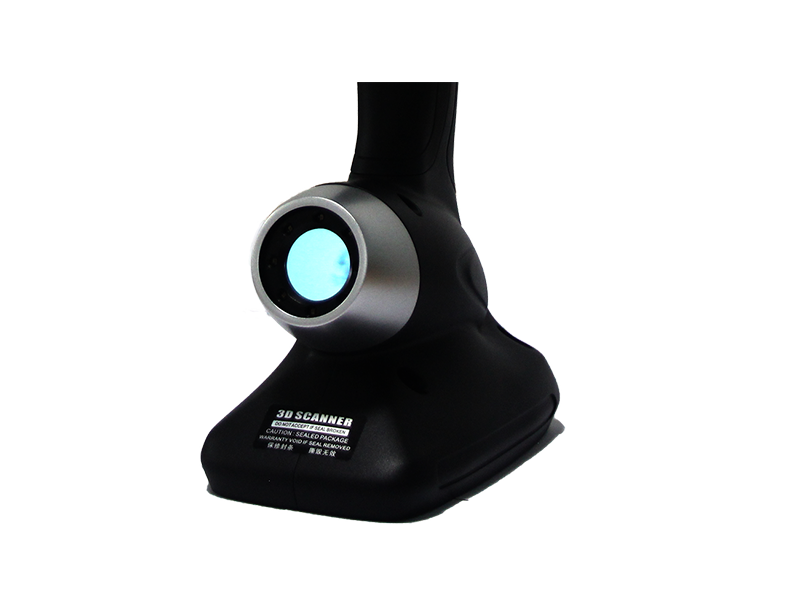

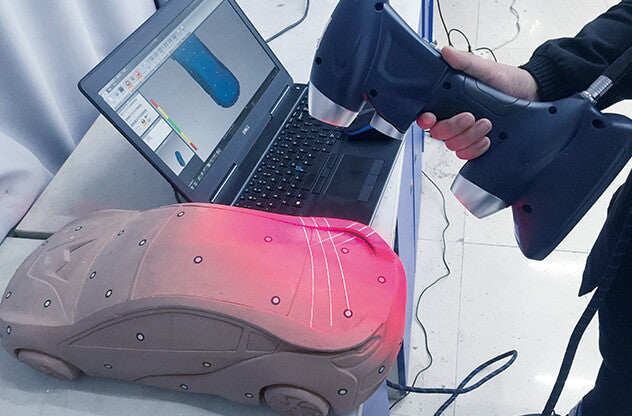

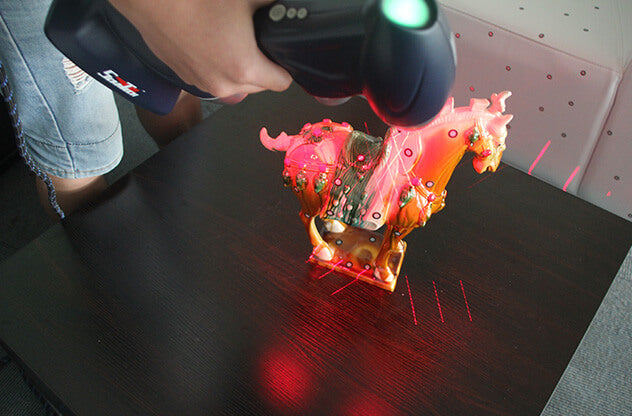

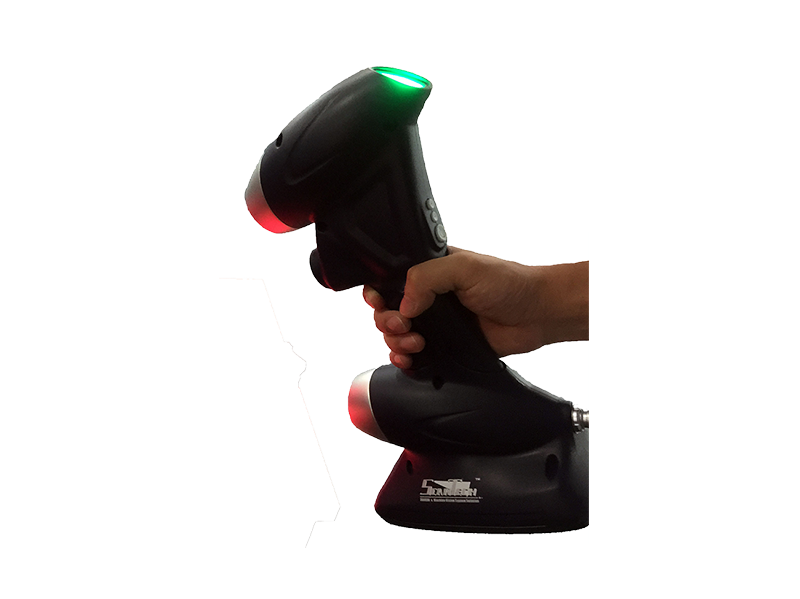

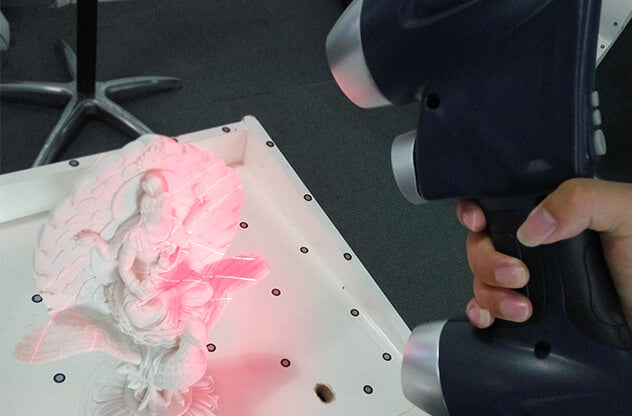

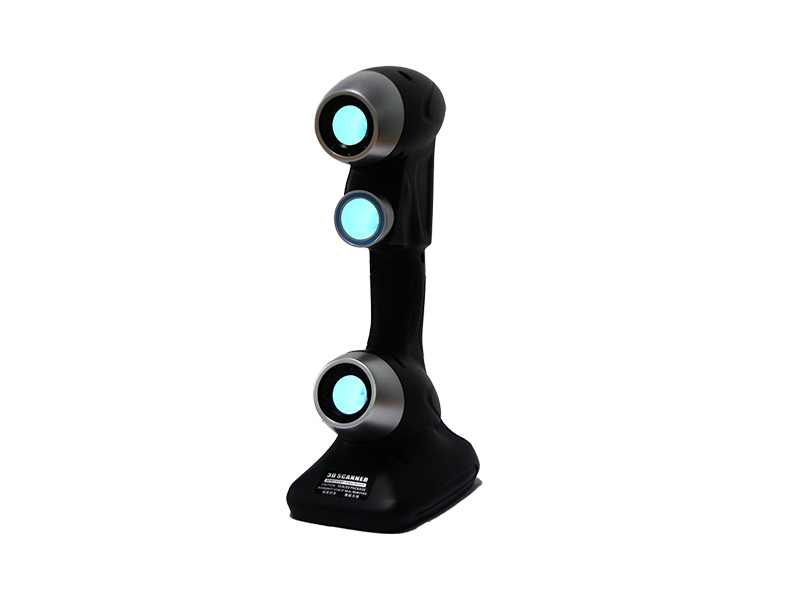

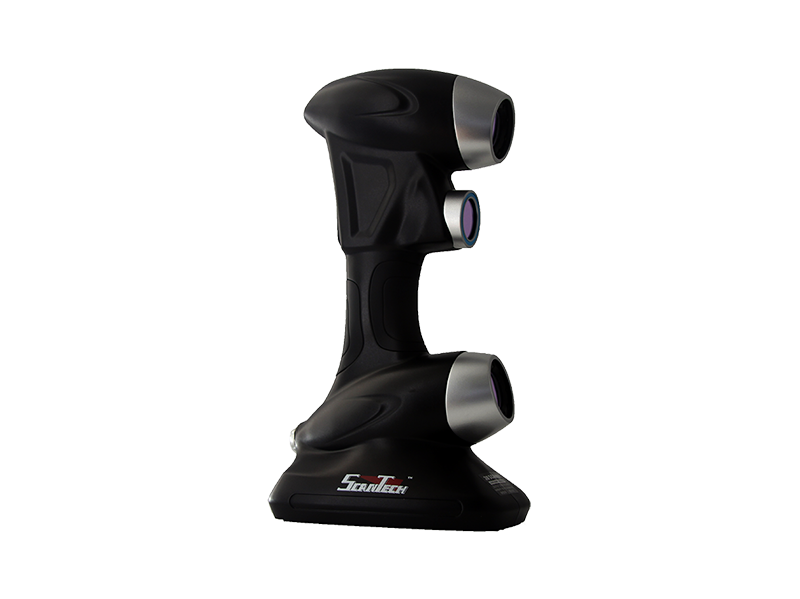

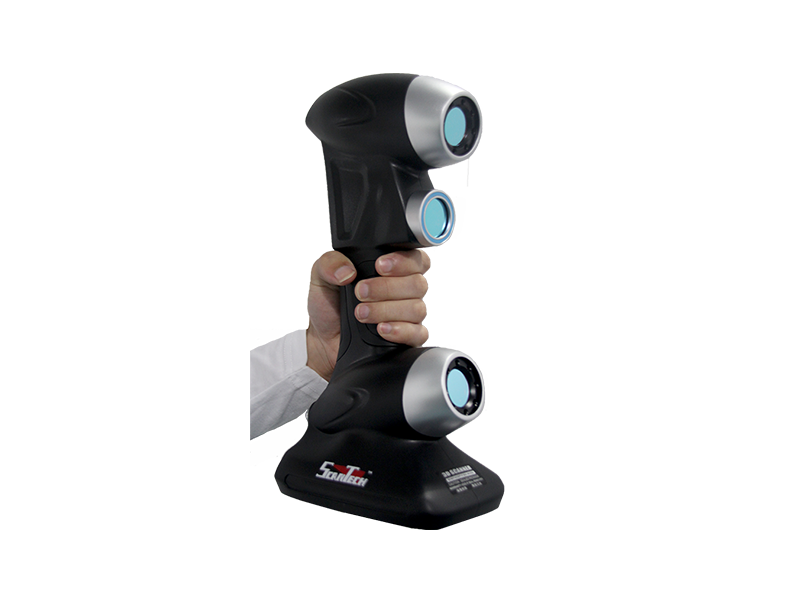

HSCAN is metrology 3D scanner, adopts multiple beam lasers to obtain 3D point cloud from object surface and friendly-use to operator. It can work with photogrammetry system (MSCAN) while scanning large volume to improve volumetric accuracy.

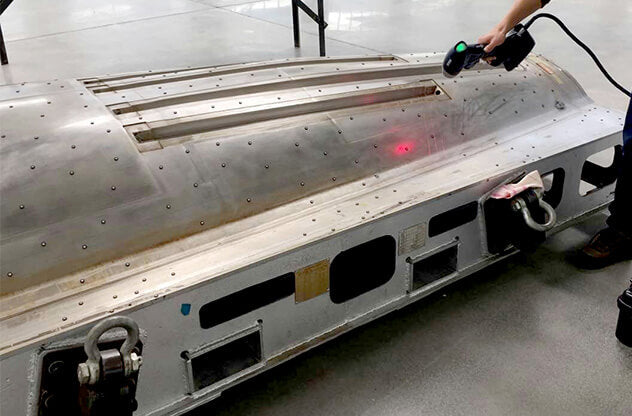

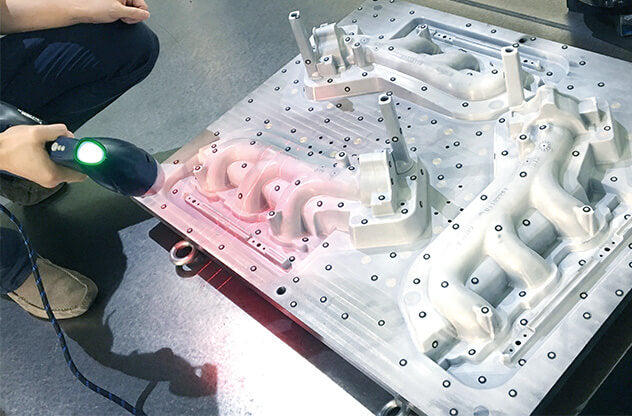

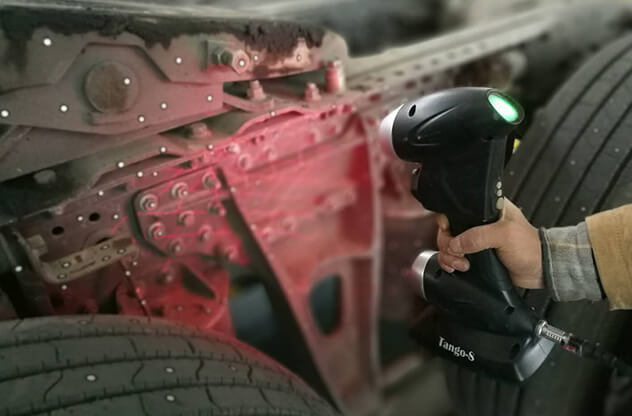

The scanner can be conveniently carried to workshop and stable in different environment to perform high accurate 3D scanning.

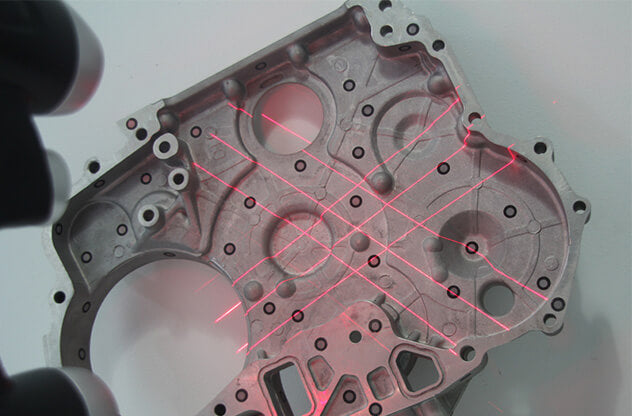

|Laser source||3 red laser crosses
(+1 extra red laser)
|Scan deep hole||Support|
|Measurement rate||265,000 measures/s|
|Laser class||CLASS Ⅱ（eye safe）|
|Accuracy||Up to 0.03mm|
|Depth of field||250mm|
|Output format||. ply、.xyz、.dae、.fbx、.ma、.obj、.asc、.stl or customized|
|Interface mode||Gigabit Lan|
|Rapid calibration||Complete calibration within 60s|
GPU：NVIDIA Quadro M1000M 2GB GDDR5
Operating system：Windows 7-64 bit, Windows 8
|Patents||CN204902790U, CN206905709U, CN107202554, CN204902785U, CN106403845, WO2018049843, CN106500627, WO2018072434, CN106500628, WO2018072433, CN206132003U, CN104501740, US10309770B2|
