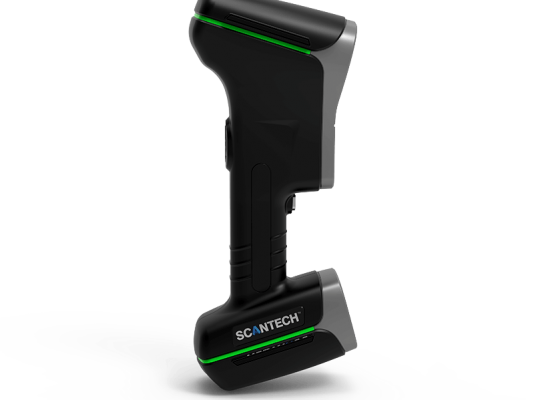

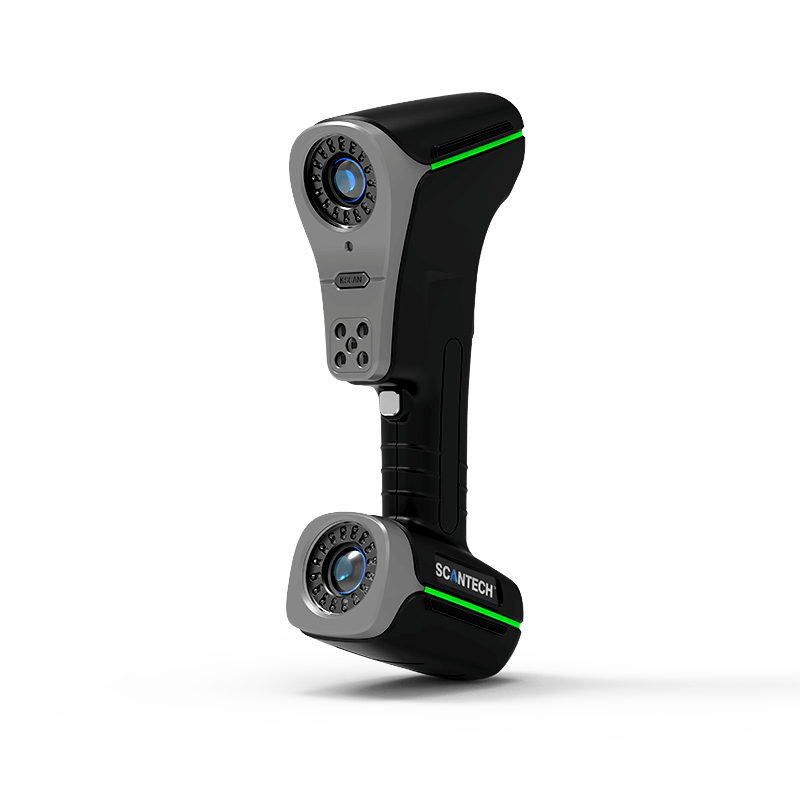

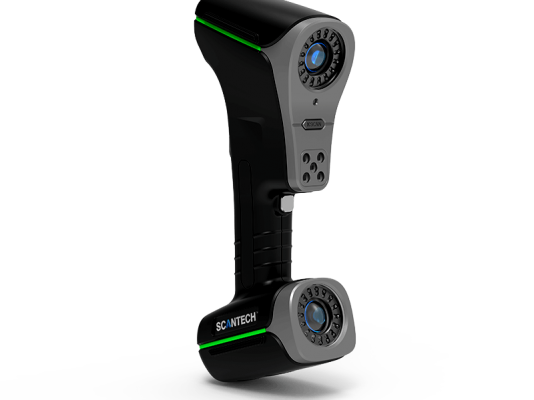

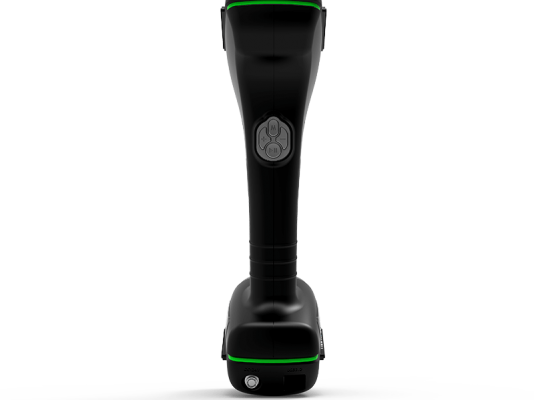

KSCAN-Magic composite 3D scanners open up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.
KSCAN-Magic series have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.
Features:
-
INNOVATIVE INFRARED LASER: KSCAN-MagicII innovatively adopts infrared laser scanning technology in worldwide. Its ultimate scanning area reaches 1440 mm × 860 mm, achieving precise wide range measurement with ease.
-
EFFORTLESS EFFICIENCY: With 45 laser lines, KSCAN-Magic 3D scanner delivers ultra-fast scanning rate of 1,650,000 measurements/s. By flexibly switching the scanning modes, it satisfies different application needs, dramatically improving working efficiency.
-
EXTREMELY-CLEAR DETAILS: Under hyperfine scanning mode, KSCAN-Magic 3D scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.
-
SINGLE LASER LINE SCANNING: Single laser line scanning mode accurately and quickly captures 3D data of deep holes and dead angle positions.
-
METROLOGY-GRADE NDT MEASURING: 0.020 mm of scanning accuracy and 0.03 mm/m of volume accuracy; deliver ultra-high precision NDT for the aerospace industry.
-
NO FEAR OF HARSHNESS: KSCAN-Magic supports super-high work adaptability in harsh environment; realistically restores the precise 3D data of reflective and black surface.
-
PERSONALIZED ADJUSTMENT: Due to 925 mm depth of field, users can freely adjust the working distance based on the performance of details, efficiency and scanning area.
-
MASSIVE FUNCTIONS: Built-in photogrammetry system, intelligent edge detection, contact probing and pipe measurement fulfill diverse application needs.
Tech Specs
Type |
KSCAN- Magic Composite |
Scan Mode |
Ultra-fast scanning: 11 blue laser crosses (+ 1 extra blue laser line)
Hyperfine scanning: 7 blue parallel laser lines
Large area scanning 11 parallel infrared laser lines
|
Laser lines total |
41 |
Deep hole scanning |
Support
|
Accuracy |
0.020 mm |
Scanning rate |
Up to 1,350,000 measurements/s |
Scanning area |
Up to 1440 mm × 860 mm |
Photogrammetry system |
Standard configuration: Built-in
Scanning area: 3760 mm × 3150mm
Depth of field: 2500 mm
|
Laser class |
CLASS Ⅱ (eye-safe) |
Resolution |
Up to 0.010 mm |
Volume accuracy |
Work alone: 0.030 mm/m
Work with 1m reference bar: 0.020 + 0.020 mm/m
Work with MSCAN-L15: 0.020 + 0.015 mm/m
|
|
Stand-off distance |
300 mm |
Depth of field |
925 mm |
Portable CMM K-Probe |
Optional: Support
Single point repeatability: 0.030 mm
Tracking frequency: 60 hz
|
Intelligent edge inspection module |
Optional: Support
Edge accuracy: 0.030 mm
|
Pipe inspection module |
Optional: Support
Output formats: YBC / LRA / compensation value
|
|
Output formats |
.stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized |
Operating temperature range |
-10~40°C |
Interface mode |
USB 3.0 |
|
|
Patents |
CN204902790U, CN206905709U, CN107202554, CN204902785U, CN106403845, WO2018049843, CN106500627, WO2018072434, CN106500628 , WO2018072433, CN206132003U, CN104501740,US10309770B2 |
|
